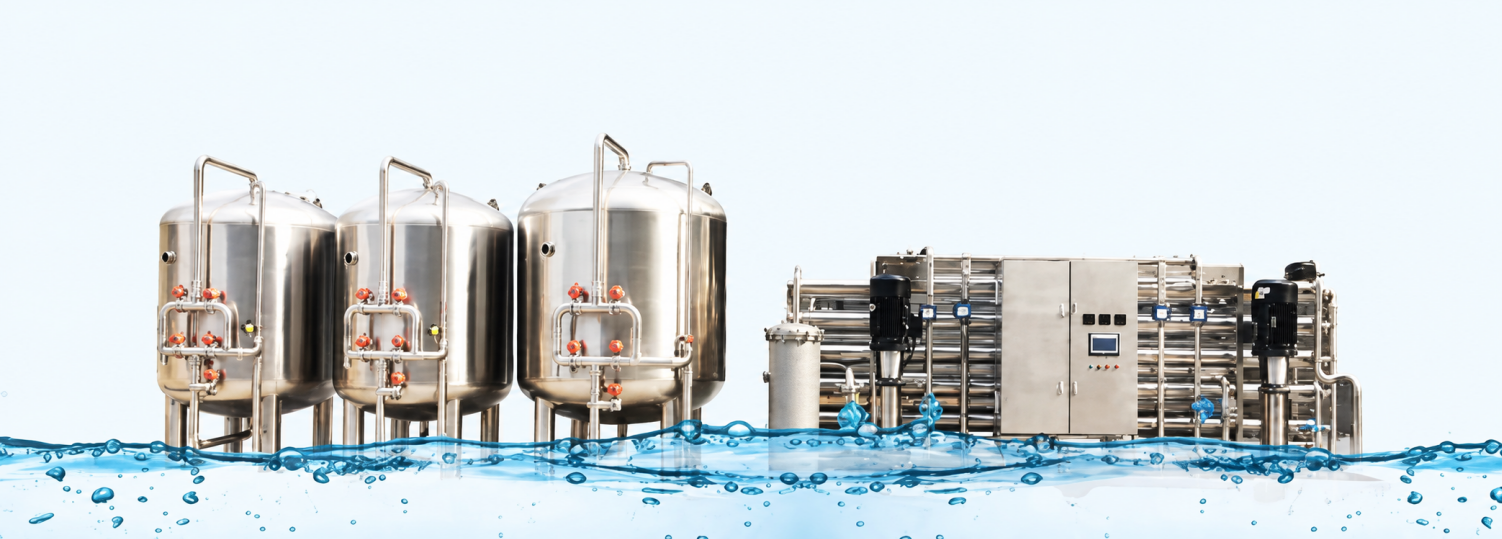

RO Water Treatment Plant

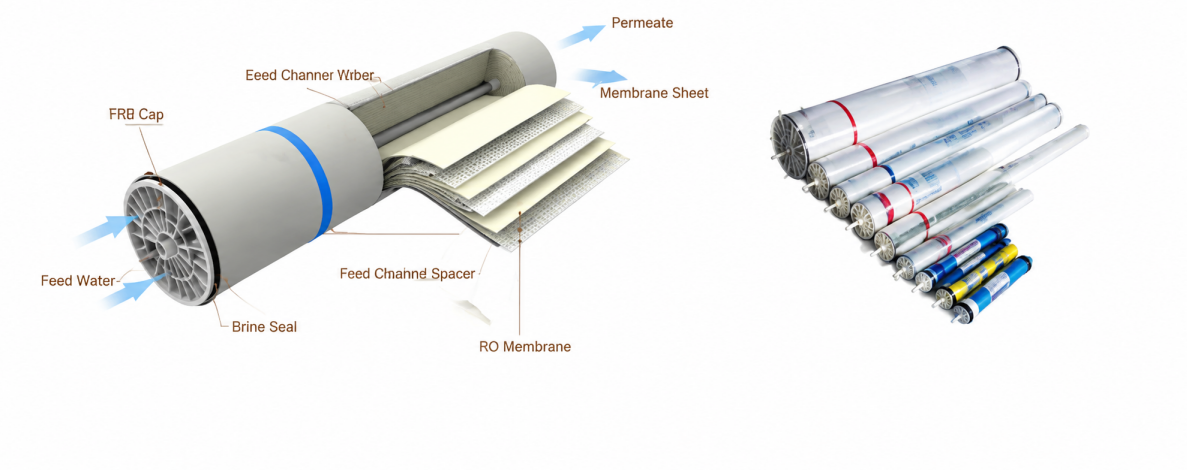

RO water treatment plant adopts reverse osmosis membrane separation technology to remove dissolved salts, heavy metals, colloids, organic matter and bacteria from raw water. Equipped with Aelt UF as pretreatment and DOW FilmTec RO elements, it delivers stable purified water ,widely used for pharmaceutical purified water, drinking water, food processing and industrial water treatment. Custom capacity available from 500L/H to 100m³/H.
PRODUCT DESCRIPTION
Description
Our Reverse Osmosis (RO) water purification system adopts a multi-stage precision filtration process to maintain stable and controlled effluent parameters, continuously complying with production and discharge regulatory requirements. Optimized consumable lifespan and automatic backwashing design substantially lower the frequency of chemical usage and filter cartridge replacement, slashing manual maintenance costs by over 40%.
With a modular configuration, the system accommodates various raw water conditions and provides effective resistance against scaling and corrosion. Integrated real-time fault early warning capability minimizes unplanned downtime. It fundamentally addresses three core pain points: unstable water quality, high maintenance expenses and poor adaptability. The solution cuts overall water-related operating costs for enterprises and guarantees long-term, stable and compliant operation.
Technological Process
Raw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →RO unit → pure water tank → (UV light sterilizer or ozone sterilizer) use

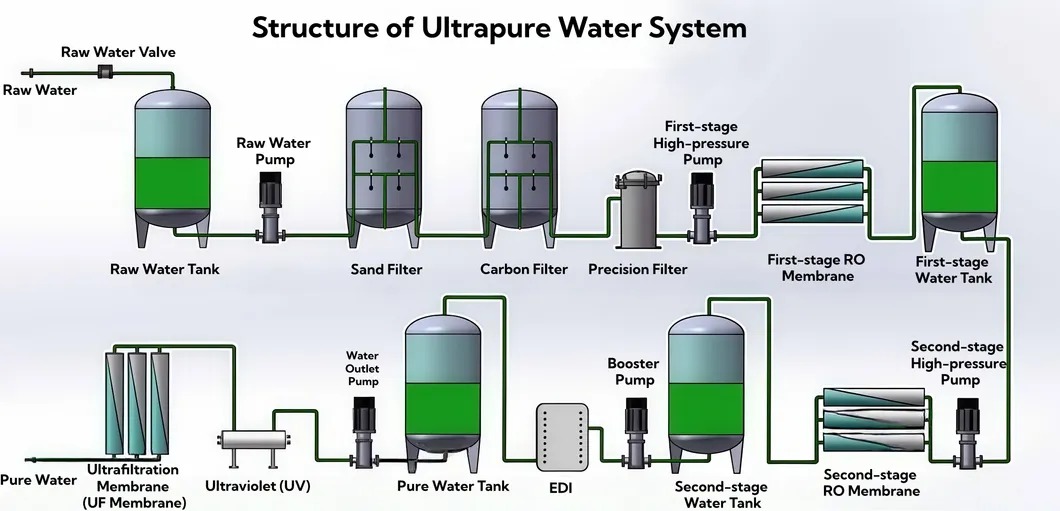

Raw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →Stage I RO unit → Stage II RO unit →middle water tank → EDI system → polished mixing bed → pure water tank → (UV light sterilizer or ozone sterilizer) use

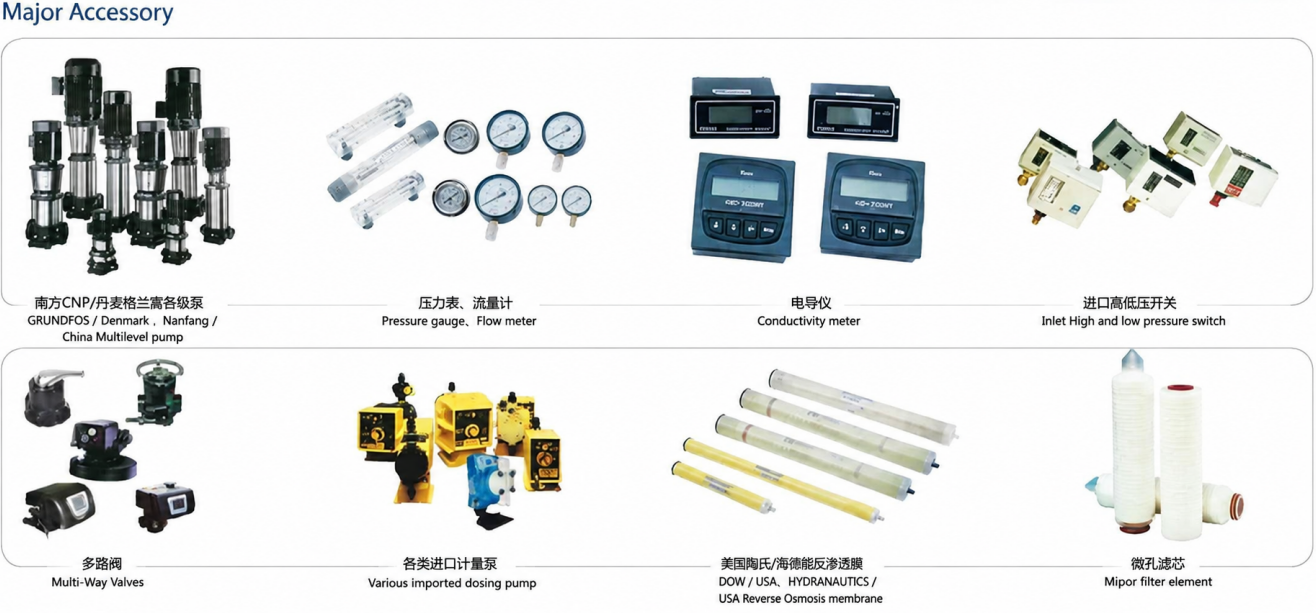

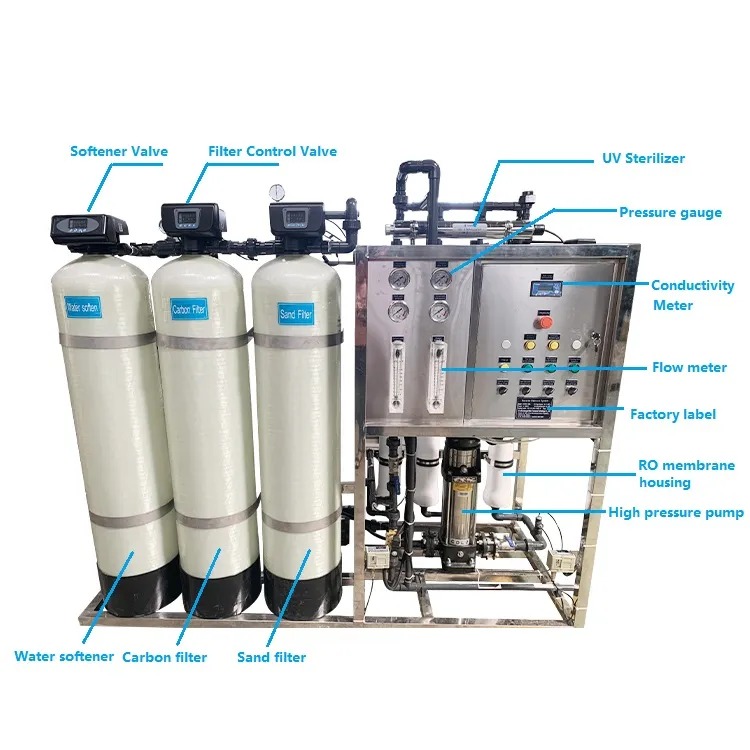

Main Accessory
Size and Capacity
Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension |
L X W X H(mm) |
RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |
Applications
Our water purification system are widely used for walk’s of life, such as Industrial,Chemical,Medical,Electrical,Beverage,Daily drinking,Laboratory and Food industries etc. not only in the field of pure water,but also brackish water,seawater, waste water and so on.

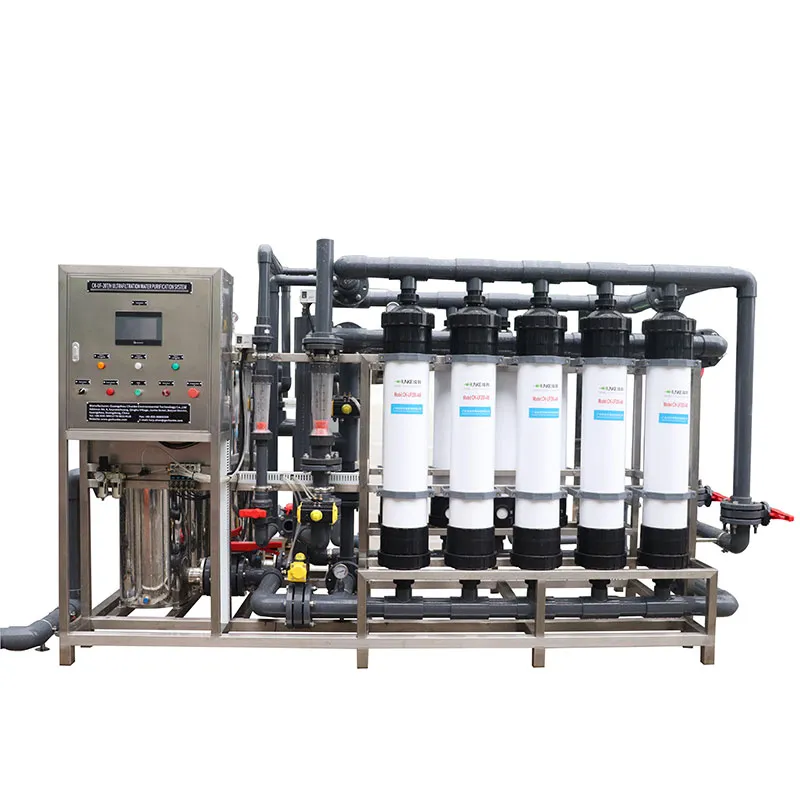

Related Products Display
FAQ
Q: How about payment term, payment safety and delivery time?
A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.
Q: How could we confirm the products?
A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.
Q: What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: What's your MOQ?
A: 1 set.
