Commercial Beer Brewing Equipment
If you are planning to launch a commercial beer brewing business or upgrade your existing beer brewing equipment, it is critical to understand the best commercial beer brewing equipment available on the market.
PRODUCT DESCRIPTION
Description
Basic Info.
Brewing capacity per batch | 1000L |
Batch per 24 hours | 1-6 batches |
Vessels of Brewhouse | -2vessels
-3vessels
-4vessels |
Heating way | -Electric heating
-Steam heating
-Gas direct fired heating |
Tanks Size | -Standard
-Customized by customer’s workplace |
Controlling way of whole system | -Semi automated
-Automated |
Temperature controlling of tanks | Automated |
|
|
Electric parts and motors | Top quality or imported brand |
Material | Food grade SS304 or 316 |
Installation service on site | YES |
Warranty date | 1-3 years |
Voltage | Customized by requirement |
Description
Aelt is dedicated to the overall innovative design and development of beer processing equipment.
This set of equipment is suitable for small and medium-sized breweries.
It is widely used in hotels, bars, resorts, entertainment venues and so on. Ace craft beer equipment features simple operation, small footprint, high output and excellent beer flavor.
The beer brewing equipment consists of a milling system, mashing system, fermentation system, refrigeration system, CIP Cleaning System, control system and heating system.
Key details are as follows:
1. Premium malt as the main raw material; processes include wort production and Beer fermentation;
2. Main equipment configuration and technical specifications;
3. Automatic fermentation control system. Designed daily processing capacity ranges from 100L to 5000L. Customization is available according to your specific requirements.

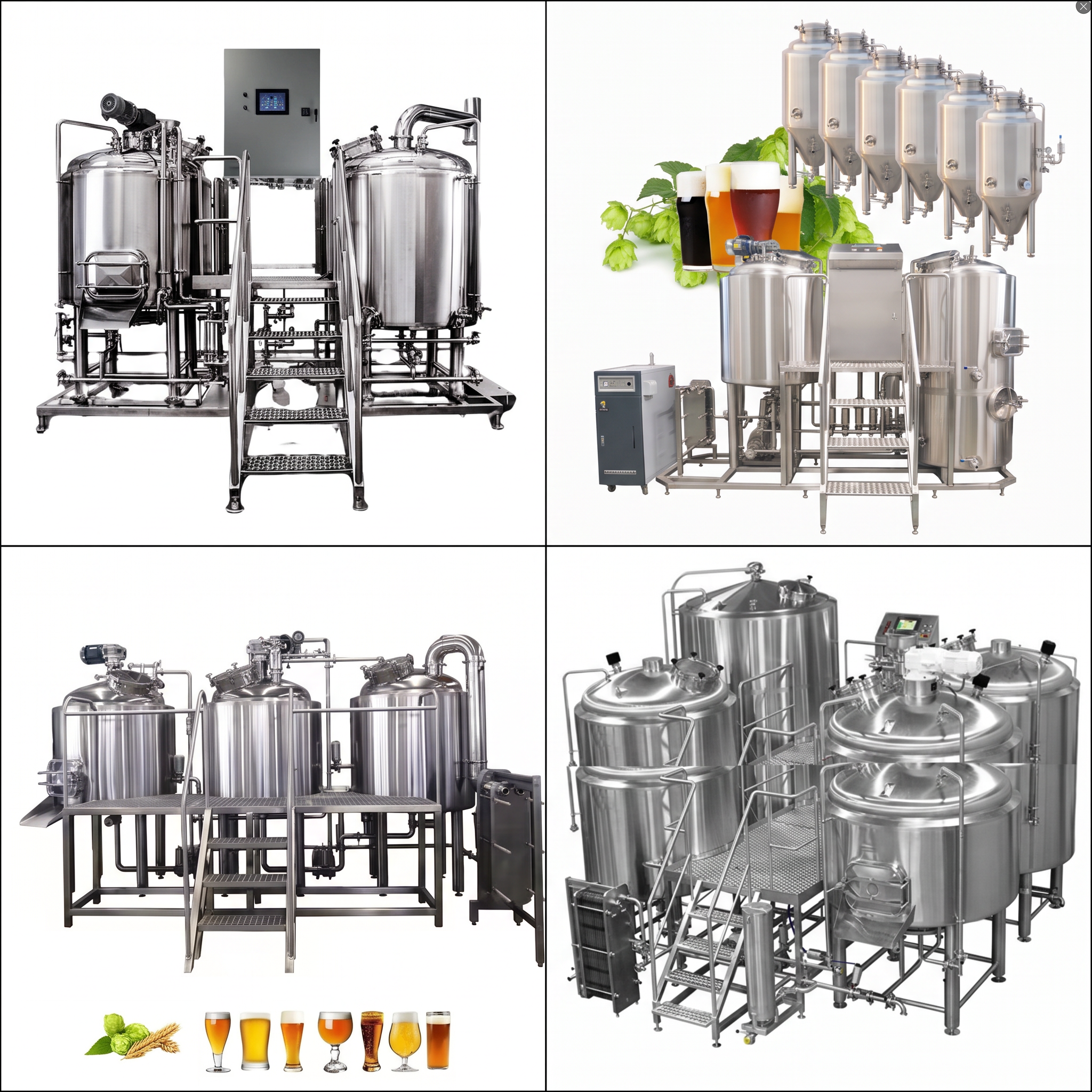

Brewhouse
2-Vessel Beer Brewing System
Mash Tun/Lauter Tun, Brew Kettle/Whirlpool Tank
3-Vessel Brewery System
Mash Tun, Lauter Tun, Brew Kettle/Whirlpool Tank Boil Kettle, Lauter Tun & Whirlpool Tank (bottom-mounted) Mash/Lauter Tun, Brew Kettle/Whirlpool Tank, Hot Liquor Tank
4-Vessel Beer Brewing System
Mash Tun, Lauter Tun, Brew Kettle, Whirlpool Tank Glass manhole cover on top
Material: 304/316L Stainless steel / copper as shown in pictures Fitted with SUS304 plate heat exchanger, yeast dosing tank and ABB pump Comes with necessary valves and piping

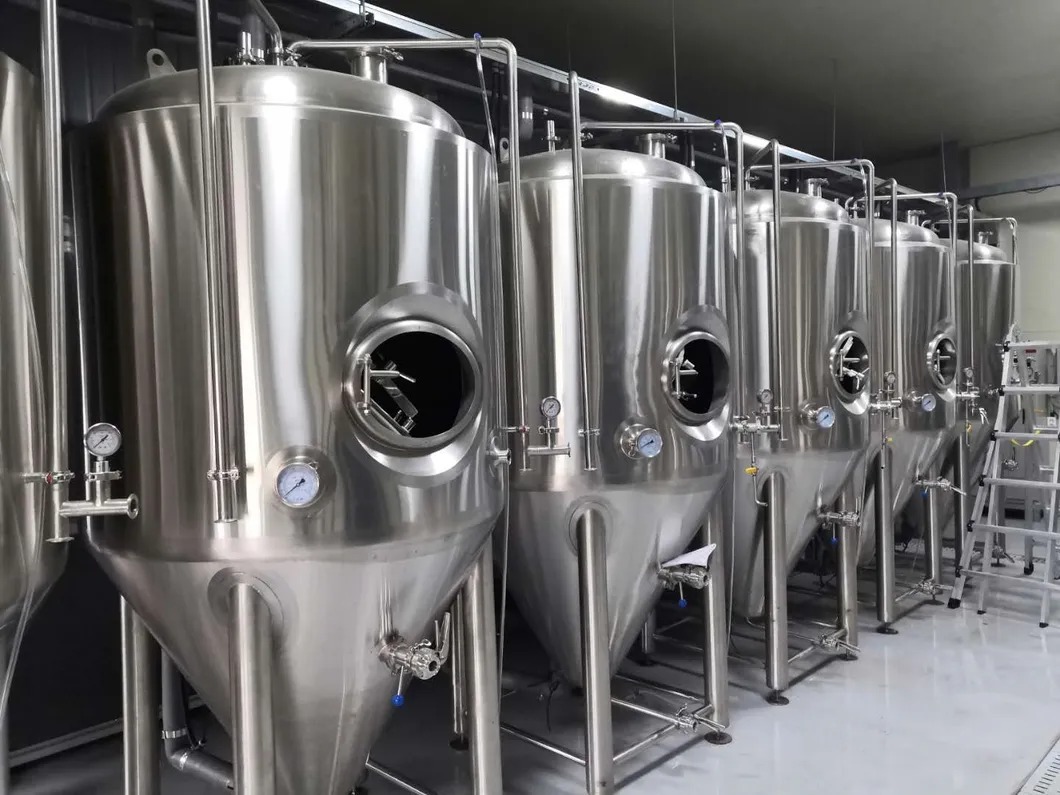

Beer Fermentation System
Capacity: 100L – 5000L Material: 304/316L stainless steel
Tank thickness: Inner shell 3 mm, outer shell 2 mm
Insulation: Polyurethane, 80–100 mm
Cooling Jacket: Dimpled cooling jacket on cylinder and cone Water-sealed exhaust valve & pressure gauge CIP spray ball installed inside piping Sample valve, beer outlet valve Top manhole or side manhole
Pressure: Test pressure 0.15–0.3 MPa, working pressure 0.2 MPa Equipped with dry hopping port, titanium racking arm, level indicator
Features of the Mashing process
Our automated brewhouse system delivers a refined brewing experience, making it an ideal choice for medium and Small breweries as well as projects with high-standard requirements.
Our Aelt brewhouse not only boosts production efficiency, but also ensures consistent quality and stable flavor across every batch.
Designed with high efficiency, energy saving and intelligent operation, it stands as the optimal solution for clients seeking advanced and reliable brewing systems.
By combining advanced automation with intelligent control, the system possesses greatly enhanced superiorities, which are listed as follows:
1. Precise Control for Consistent Brewing Quality
Precise control guarantees consistent brewing quality.
Equipped with accurate temperature control, timing and agitation devices, our automatic brewhouse system maintains optimal working conditions throughout the entire mashing process. It ensures continuous batch production and helps brewers deliver high-quality products at all times.
2. Intelligent Operation for Simplified Brewing
This automatic operating system streamlines the brewing workflow. Brewers can effortlessly set key parameters via an intuitive control panel. It cuts down manual labor, delivers a more user-friendly operation, and greatly improves management efficiency.
3. Labor Savings and Increased Efficiency
Once the parameters are set, the automatic brewhouse system can complete every stage of mashing fully unmanned.
From heating and agitation to cleaning and maintenance, no manual intervention is required.
It not only cuts labor costs and shortens the production cycle, but also greatly improves overall brewing efficiency.
4.Energy-Efficient Design for Reduced Operating Costs
The high-efficiency and energy-saving design enables precise control over heating duration and intensity, effectively reducing unnecessary energy consumption.
The scientific heating and cooling systems realize rapid temperature adjustment while maintaining low energy usage, helping brewers greatly cut down operational costs.
5. Easy Cleaning and Maintenance
The integrated CIP cleaning system executes automatic cleaning procedures after each mashing cycle, ensuring strict hygiene standards and shortening cleaning time.
Built to be durable and low-maintenance, this system minimizes downtime and greatly reduces long-term maintenance costs.
Product Advantages
1. We can customize beer equipment design based on the customer’s brewing method; the brewed beer can reach up to 33 Plato.
2. All tanks adopt high-quality SUS304 food-grade stainless steel; all pipelines are SUS304, with 3 mm inner wall and 2 mm outer shell.
3. All tanks are equipped with specially designed jackets to guarantee heating and cooling efficiency. Jackets are fitted on cone top and cylinder bottom with sufficient heat exchange area.
4. Our tanks feature much larger headspace; total volume excludes headspace above the lid.
5. Tanks are welded with 100% TIG welding. Jacket welding adopts full water-cooled welding. Uniform dimpled cooling jackets ensure zero leakage and long service life; welds are passivated!
6. Our polishing process is full mirror polishing with six polishing passes to achieve a mirror finish of Ra 0.4 μm, enabling 360° dead-angle-free cleaning.
7. Jackets undergo 12-hour air and hydrostatic tests separately; jacket test pressure 5 bar, inner shell test pressure 4 bar. An additional 48-hour hydrostatic test is performed before packaging.
8. Strict quality control and process inspection & testing system. All test records are retained in our system after tank shipment and traceable via checklists and serial numbers.
9. We adopt high-end product lines for tank manufacturing. All components such as chillers, heat exchangers, steam boilers and Schneider/ABB electronic control systems use international brands to guarantee quality and convenient after-sales service.
Product Parameters
Output/Brew | 5BBL | 8BBL | 10BBL | 15BBL | 20BBL | 25BBL | 30BBL | 35BBL | 50BBL |
Brew/Week | 2~6 |
Output/Week | 10~30BBL | 16~48BBL | 20~60BBL | 30~90BBL | 40~120BBL | 150~300BBL | 180~360BBL | 210~420BBL | 240~360BBL |
Area Request | ＜45㎡ | ＜60㎡ | ＜70㎡ | ＜90㎡ | ＜120㎡ | ＜140㎡ | ＜150㎡ | ＜180㎡ | ＜150㎡ |
Brew master | 1 | 1 | 1-2 | 1-2 | 2-3 | 2-3 | 3-5 | 3-5 | 3-5 |
Material | Interior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper |
Heating | Electric/Steam/Direct fire for optional |
Voltage | 3 phase/380(220, 415,440...)v/50 (60)Hz |
Brewery Equipment Configuration
System | Content | Specification | Quantity(PCS) |
Milling System | Malt Miller | 300-500 kg/h | 1 pc |
Auger (option) | Ability is 1,000-1,500 kg/h | 1 pc |
Hopper(option) | Volume is 0.5m³ , SUS 304 with pre-masher | 1 pc |
Brewhouse system | Mash Tun / Lauter Tank | Volume is 5BBL, with false bottom, grant, raker with motor | 1 pc |
Kettle / Whirlpool Tank | Volume is 5BBL, electric heating | 1 pc |
HLT Water Tank | Volume is 10BBL, electric heating | 1 pc |

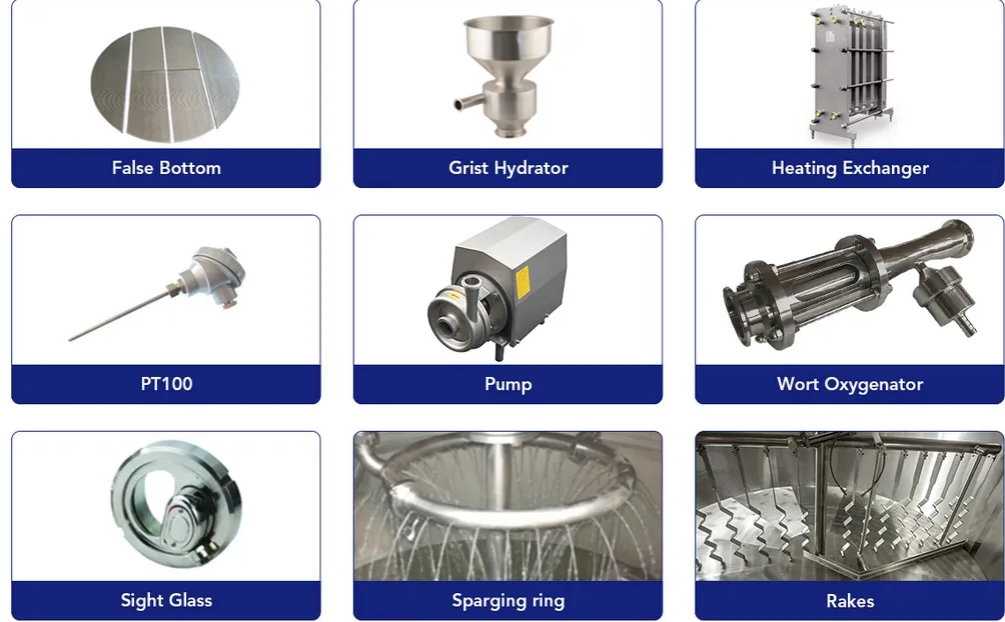

Includes plate heat exchanger , wort pump , motors , hops filter , yeast adding tank, oxygen device and pipelines |
Fermentation system | Fermenters | Volume is 5BBL or 10BBL (double batches) | 6 pcs |
BBT (option) | Volume is 5BBL or 10BBL (double batches) | 2 pcs |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve |
Cooling system | Glycol tank | Volume 10BBL or 15BBL | 1 pc |
Cold water tank (option) | Volume 10BBL, cooled by glycol tank | 1 pc |
Chiller | 5HP, Kansa brand | 1 pc |
Cleaning system | CIP | 50L two tanks, heated by electric, with pump and trolley | 1 pc |
Controlling system | Control cabinet | PLC touch screen or PID controller | 1 pc |
FAQ
Q: What are the payment terms, payment security and lead time?
A: We accept 40% deposit, balance paid before shipment. Irrevocable Sight L/C is also acceptable. Lead time: 7–30 days, subject to order quantity.
Q: How can we confirm product specifications?
A: Our professional engineers will follow up on all design and adjustments according to your requirements. OEM & ODM services are available.
Q: What services can we provide?
A: Accepted delivery terms: FOB, CFR, CIF, EXW, DDP, DDU, Express; Accepted currencies: USD, EUR, CNY; Accepted payment methods: T/T, L/C, Credit Card, Western Union, Alipay.
Q: How can we verify your machines work properly?
A: We will test machine performance for you before shipment.
Q: What is your MOQ?
A: 1 set.
Beer Fermentation Tank: The Complete Guide to Stainless steel Beer fermentation Tanks for Modern Breweries
Product Details

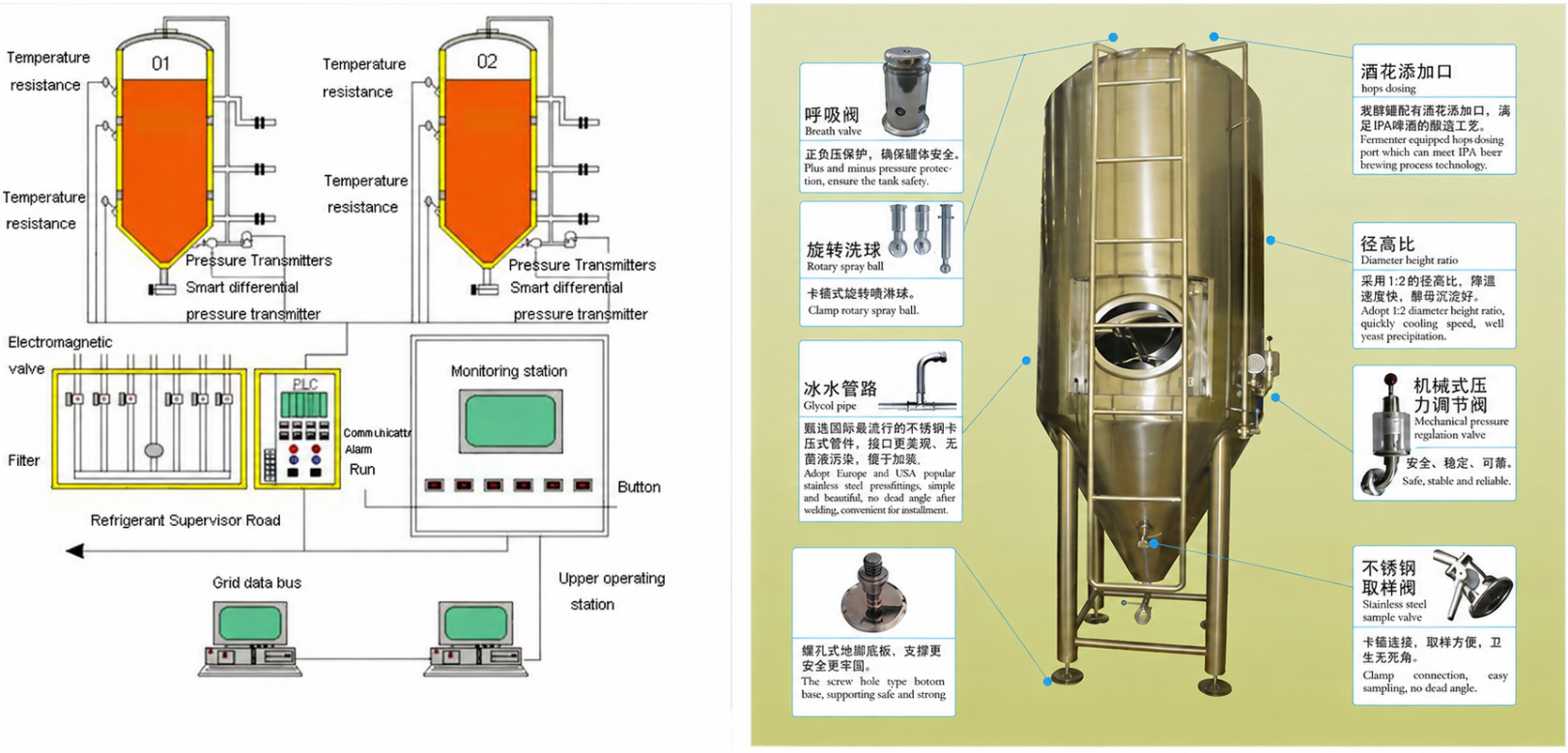

Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation vessel), primary fermentor or unitank as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Aelt Stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of Aelt fermenter is based on our vast beer knowledge and especially the Conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
Product Specification:
The Output of Brewing Equipment
Daily Output | 100L | 200L | 300L | 500L | 600L | 800L | 1000L | 2000L | 3000L | 5000L |
Unit Type | TS100 | TS200 | TS300 | TS500 | TS600 | TS800 | TS1000 | TS2000 | TS3000 | TS5000 |
Floor Space | 15m² | 20m² | 25m² | 45m² | 55 m² | 70m² | 80m² | 120m² | 150m² | 250m² |
Height | 1750mm | 2000mm | 2060mm | 2700mm | 2700mm | 2750mm | 2810mm | 3500mm | 4000mm | 4300mm |
Power | 8KW | 12KW | 20KW | 35KW | 35/15KW | 35/15KW | 35/15KW | 65/15KW | 65/15KW | 65/15KW |
Electricity | 3P 380V(220V, 110V, 415V...) 50(60)HZ; 1P 220V(120V,110V,240V...) 50(60)HZ |
Beer Brewing Equipment / MICRO BREWERY SYSTEM |
| Components | Specification |
Milling System | Miller | Double Roller,Noise<60db |
Heating System | Boiler (steam heating) | Electric or steam |
Brewhouse System | Mash / Lauter tun | Heating jacket
Material: SUS 304/316 or Red copper
1 Thermometer / tank |
Boiling / Whirlpool Tank |
Heat-exchanger | Plate type |
Fermentation System | Fermentation Tank | Top manway/Side manway
Glycol cooling jacket |
Yeast Adding Tank | SUS304 Stainless Steel |
Refrigerator System |
Refrigerator machine | With control system |
Pump / valve |
|
Ice water tank | Fluorine filling |
CIP Cleaning System | Acid Tank | SUS304 full welded |
Alkali Tank |
Pump |
|
Control System | Control Cabinet | Semi-automatic |

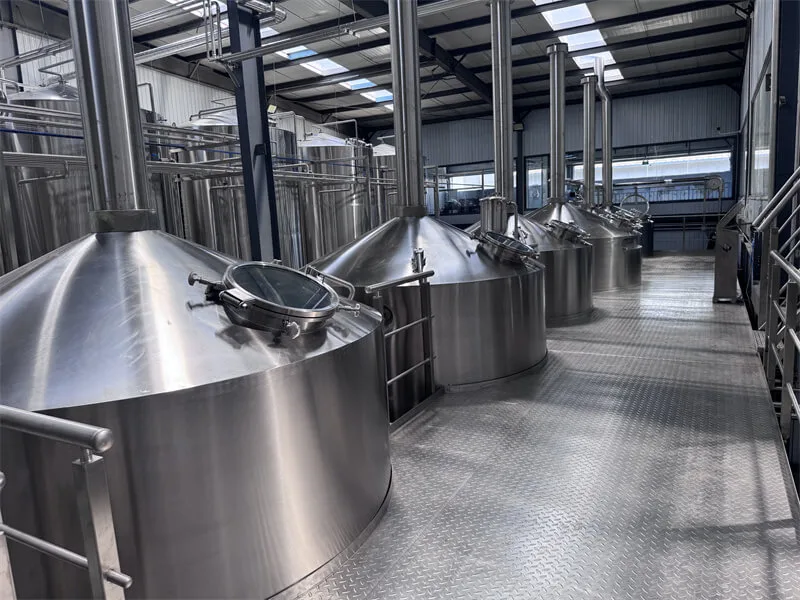

Our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric or steam heat. Semi-automatic control and easy to operate.
PRODUCT FEATURES:
1)Desiging tanks and heating system according to craft, mash tank warming≥10ºC/min
2)Energy saving stir structure : large cross-section impeller, 15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4)Plow knife of filter tank separated to one foot, feet and bow plow knife
5)Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6)Material includes stainless steel 304, 316 and red copper

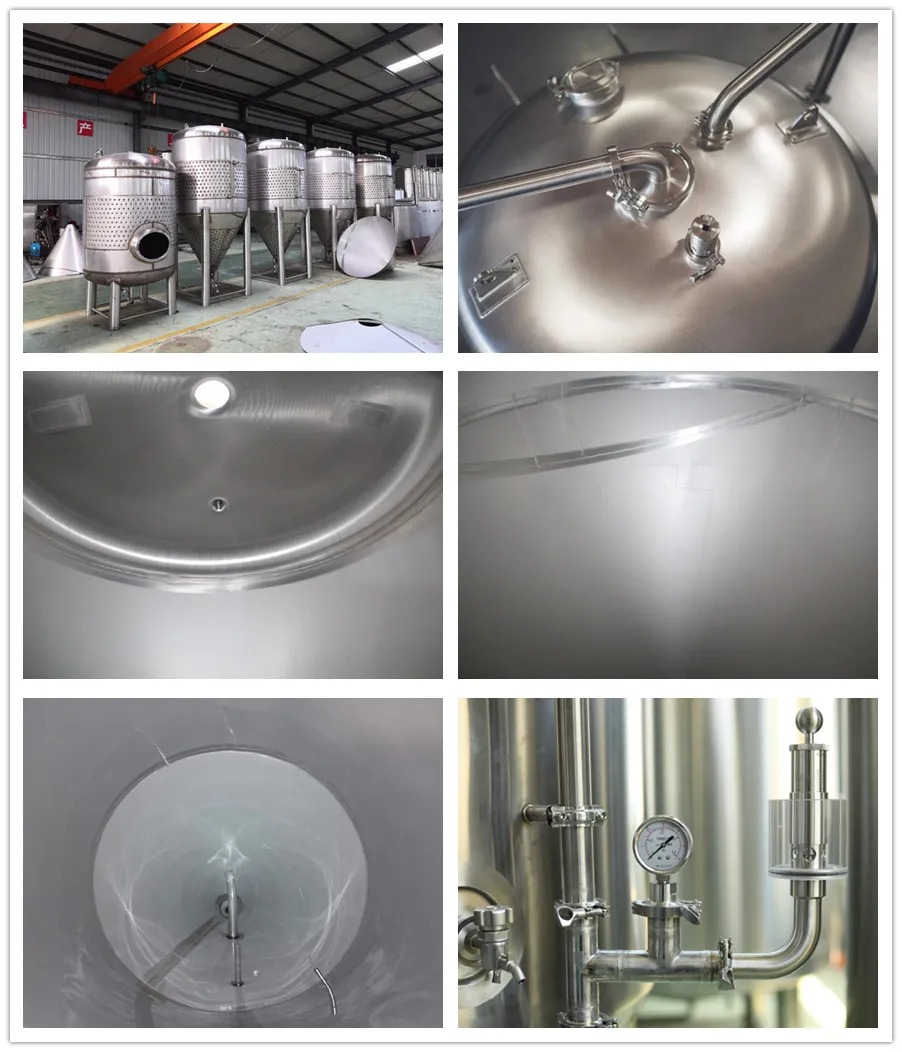

Fermentation tanks body is provided with a sandwich or cold, heating, cooling temperature. Fill the tank with the top and bottom head(or cone) are used spinning R-angle-grinding, polishing tank wall, no health corners, and fully enclosed design ensures that the material is always under a pollution-free status of the mixing, fermentation, air breathing apparatus with hole, CIP cleaning nozzles, manholes and other devices.
Whether you are starting a business in hotel / Investing a brewery in local region / Increasing brewery production / Large brewery upgrading project, COME HERE! A perfect solution is always for you!
In Aelt, Quality is our culture!We pay more attention when produce the products!
We'd like to share more information with you about us, about our factory, our products, our rawmaterial, manuracutring progress etc. The quality is not only shows by the tank appearance.
Generally there are four main elements may have influence for the equipment quality: The raw material, the drawing of the quipments, the welding and polishing and the testing.
(1) About the raw material:
About the sanitary stainless steel 304 , we use 3mm interior shell and 2mm exterior shell.And we usually take the samples to test it from the government. We ensure its quality!
(2) About the drawing:
Generally our technician will design the suitable layout accordingly before production once our customers confirmed their orders.
Then our workshop will do the manufacturing strictly according to the detailed drawing. It is normative for every order.

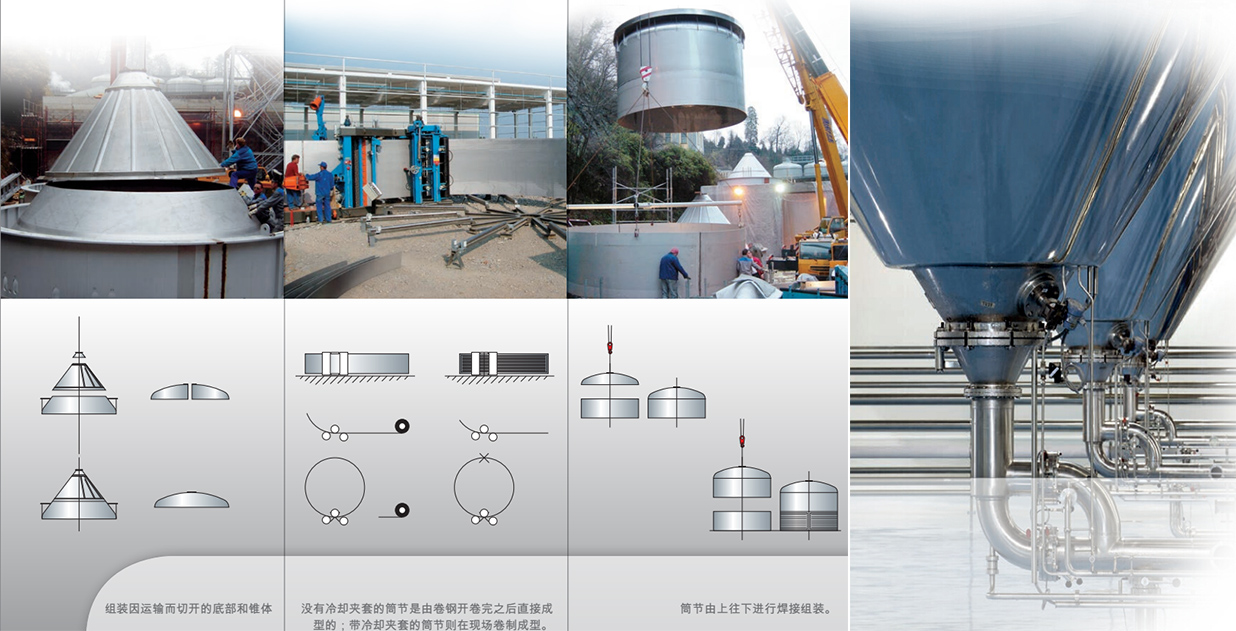

(3) About the welding and polishing:
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder.
The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.2~0.4 μm without dead corner firstly, then do acid pickling and passivation.
Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.
Our Service:
1.Our market team can serve you in 24 hours, so please feel free to contact at your convinent.
2.Our dedicated engineers can supply 2D,3D drawing for you if you needed.
3.If you need to inspect our factory, we can book the hotel and make the invitation letter for you.
4.Our market team with our engineer with more than 10 years experiences together can satisfy you with any technology problem;
5.Customize machine can be offered(voltage,material,dimension,heating source and so on)
After-service:
1.When shippment, we will supply a whole set of parts for backup.
2.If there is any parts damaged, we are surely can send the part to you in 24 hours.
3.Main machine is 3 years warranty, auxiliary machine is 12 months warranty,
4.Electrical components is 18 months warranty, life long service.
